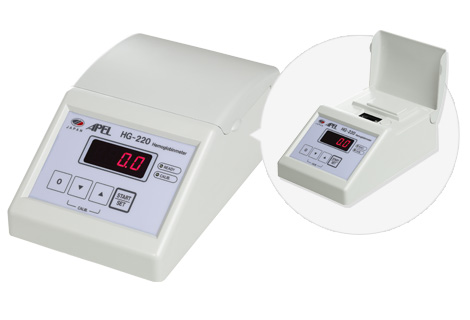

Medical device for rapid and accurate measurement of hemoglobin values.
Download CatalogCyanmethemoglobin method only (international standard method)
Compact and lightweight (weight approximately 0.6 kg)
High-brightness LED (long life)
Auto-calibration (automatic calibration function)
| Display | 3 1/2 digit 7-segment LED |
| Measurement Range | g/dL: 0.0 to 30.0 / mmol/L: 0 to 18.6 |
| Measurement Wavelength | 540 nm |
| Light Source | High-brightness green LED |
| Photodetector | High-sensitivity silicon photodiode |
| Sample Volume | 1.0 mL or more |
| Photometric Accuracy | ±1.5 % or less |
| Dilution Ratio | 1 : 251 |
| Power Supply | Dedicated AC adapter (100 to 240 VAC, 50/60 Hz) |
| Measurement Tube | Square cell |
| Dimensions | 117 (W) x 185 (D) x 77 (H) mm |
| Weight | Net 0.6 kg (main unit) |
| Square Cell | 2 units |
| Power Cord (with AC Adapter) | 1 set |
| Instruction Manual | 1 manual |
*Specifications and appearance may be changed without notice for improvement.
