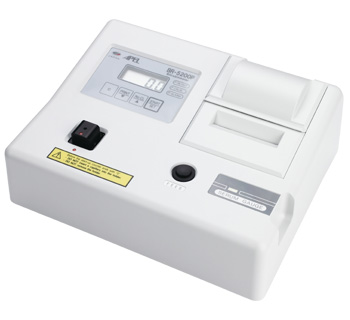

Total bilirubin meter with built-in printer for neonatal use
Download CatalogShort measurement time (maximum 1 second)
Built-in printer
High-brightness LED light source (long life)
Easy capillary insertion
Lightweight (weight only 1.7 kg)
Correction for hemolysis and turbidity
External interface (USB equipped)
Easy calibration (once calibrated, daily calibration is not required)
| Measurement Method | 2-wavelength differential method (461 nm, 577 nm) |
| Measurement Range | 0 to 30 mg/dL (Total Bilirubin) |
| Interference Correction | 0 to 250 mg/dL |
| Measurement Accuracy | ±5 % |
| Minimum Sample Volume | 50 to 60 μL (whole blood) |
| Display | 3 1/2 digit LCD |
| Measurement Tube | Hematocrit capillary tube (heparin treated) |
| Light Source | High-brightness LED |
| Photodetector | High-sensitivity silicon photodiode |
| Interface | USB |
| Power Supply | Dedicated AC adapter (100 to 240 VAC, 50/60 Hz) |
| Dimensions | 262 (W) x 214 (D) x 109 (H) mm |
| Weight | Net 1.7 kg (main unit) |
| Standard Solution (ABY) | 2 bottles |
| Capillary Tube (Heparin treated: Red) | 1 case (100 tubes) |
| Capillary Tube (Plain: Blue) | 1 case (100 tubes) |
| Capillary Putty | 1 sheet |
| USB Cable | 1 cable |
| PC Software (CD-ROM) | 1 disc |
| Power Cord (with AC Adapter) | 1 set |
| Instruction Manual | 1 manual |
| Thermal Roll Paper | 1 roll |
*Specifications and appearance may be changed without notice for improvement.
