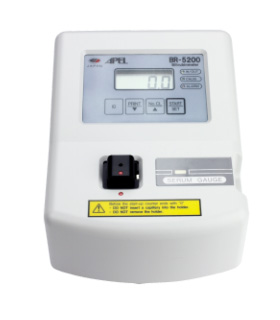

Total bilirubin meter for neonatal use with dual power supply
Download CatalogShort measurement time (maximum 1 second)
Connection to peripheral devices (USB and RS-232C)
High-brightness LED light source (long life)
Easy calibration (once calibrated, daily calibration is not required)
Easy capillary insertion
Correction for hemolysis and turbidity
Lightweight (weight only 0.9 kg)
| Measurement Method | 2-wavelength differential method (461 nm, 577 nm) |
| Measurement Range | 0 to 30 mg/dL (Total Bilirubin) |
| Interference Correction | 0 to 250 mg/dL |
| Measurement Accuracy | ±5 % |
| Minimum Sample Volume | 50 to 60 μL (whole blood) |
| Display | 3 1/2 digit LCD |
| Measurement Tube | Hematocrit capillary tube (heparin treated) |
| Light Source | High-brightness LED |
| Photodetector | High-sensitivity silicon photodiode |
| Interface | USB, RS-232C |
| Power Supply | 9 V dry battery, dedicated AC adapter (100 to 240 VAC, 50/60 Hz) |
| Dimensions | 150 (W) x 200 (D) x 100 (H) mm |
| Weight | Net 0.9 kg (main unit) |
| Standard Solution (ABY) | 2 bottles |
| Capillary Tube (Heparin treated: Red) | 1 case (100 tubes) |
| Capillary Tube (Plain: Blue) | 1 case (100 tubes) |
| Capillary Putty | 1 sheet |
| USB Cable | 1 cable |
| PC Software (CD-ROM) | 1 disc |
| Power Cord (with AC Adapter) | 1 set |
| Instruction Manual | 1 manual |
*Specifications and appearance may be changed without notice for improvement.
